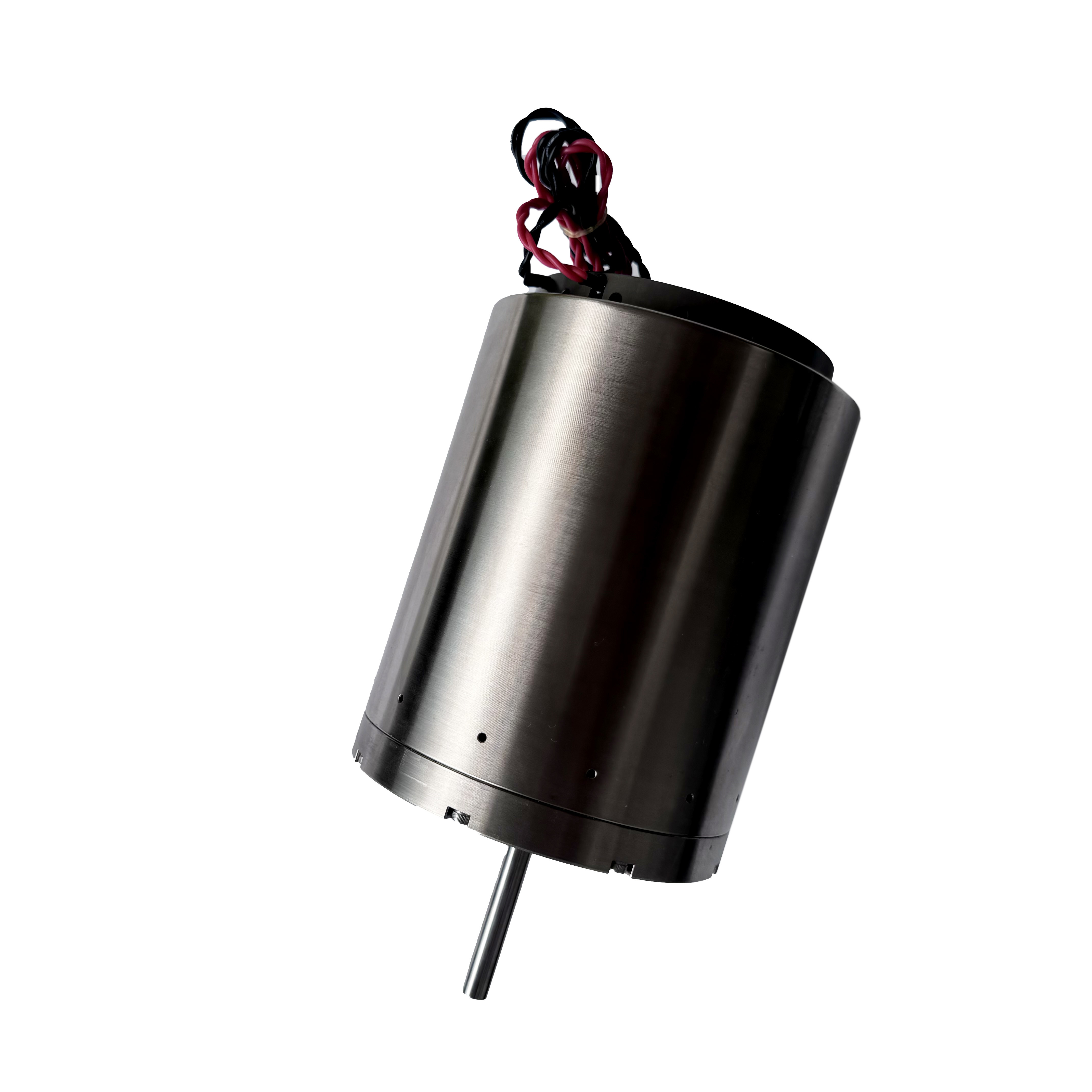

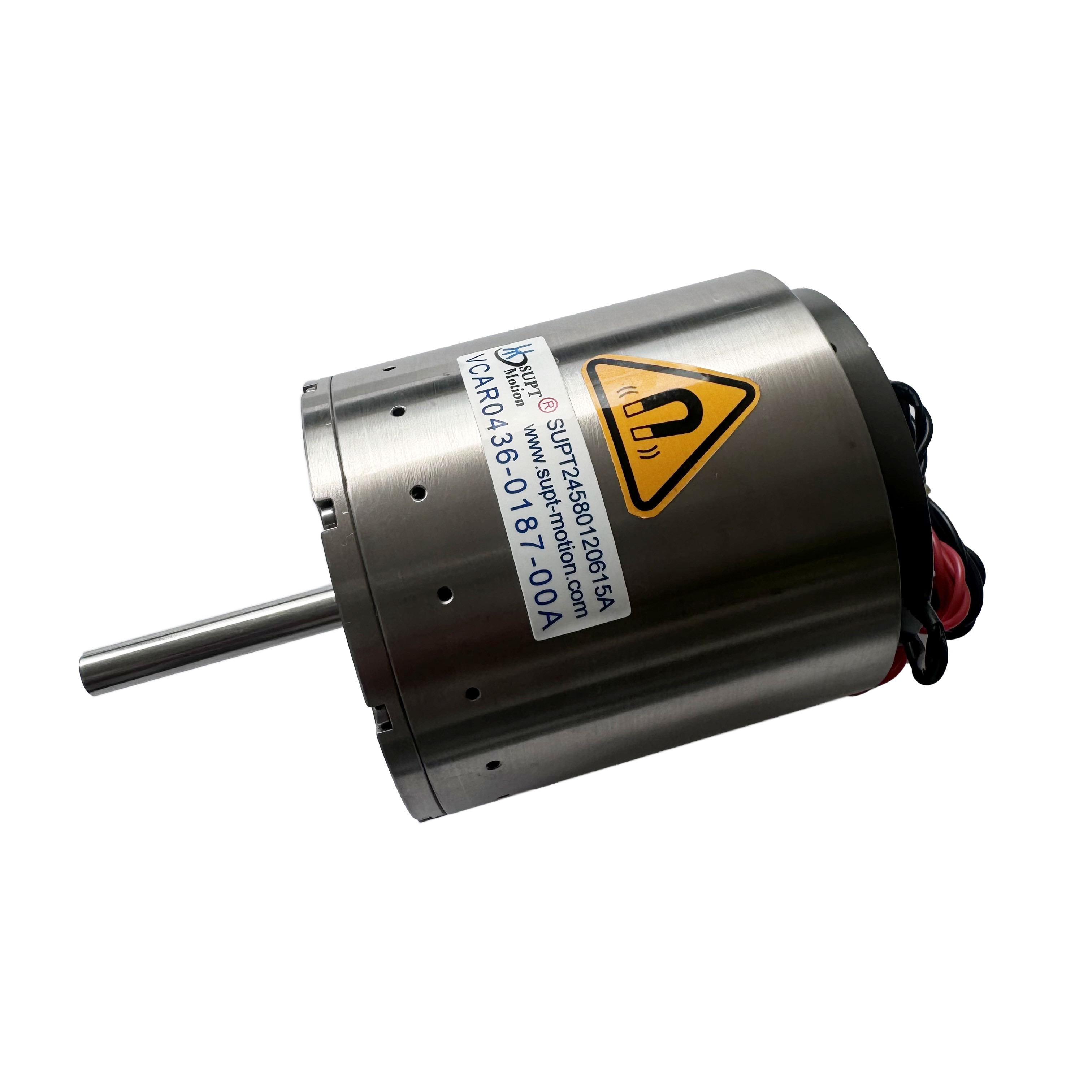

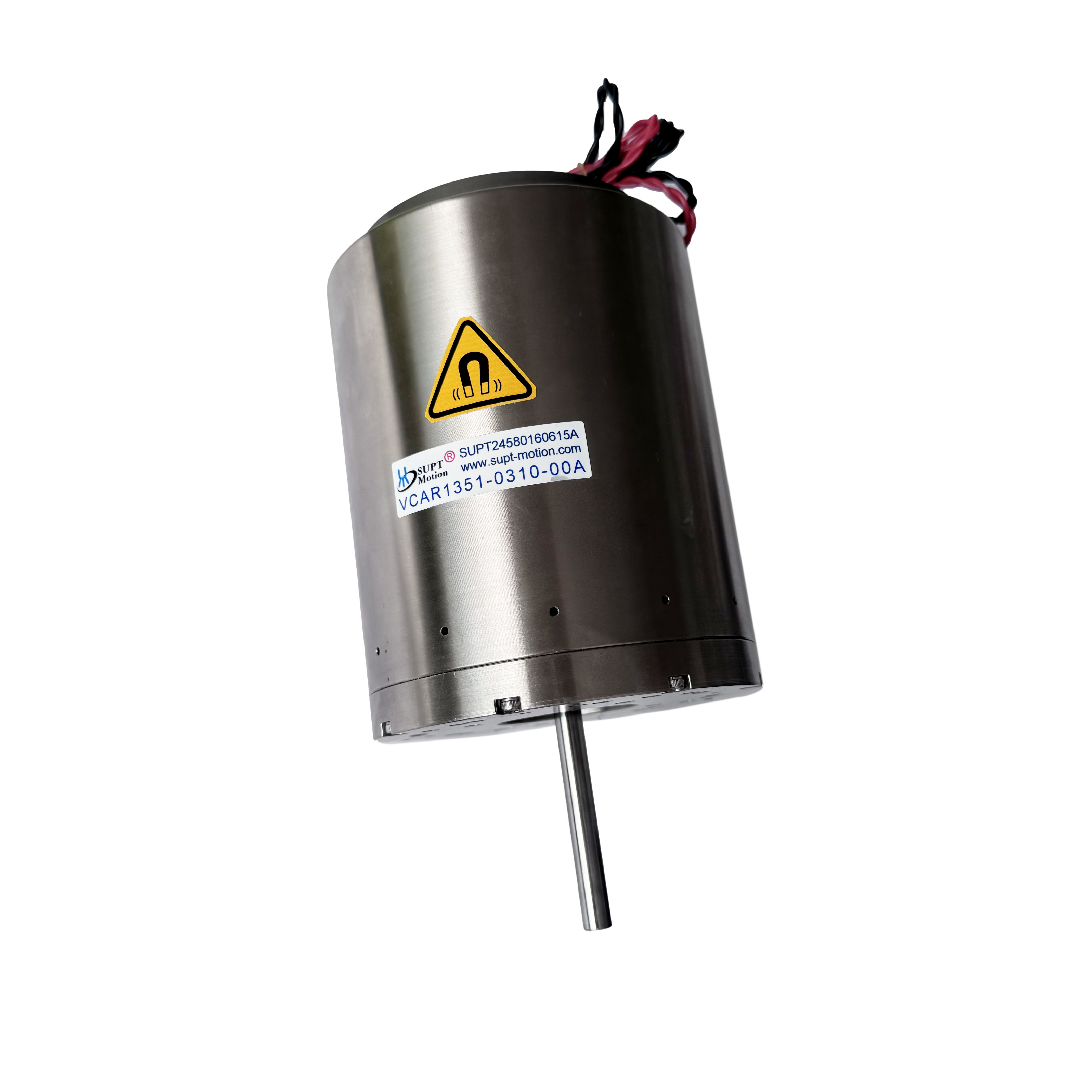

Low Noise High Stability Linear Voice Coil Motor For Medical Scanners

  • Low Noise High Stability Linear Voice Coil Motor For Medical Scanners
  • Low Noise High Stability Linear Voice Coil Motor For Medical Scanners
  • Low Noise High Stability Linear Voice Coil Motor For Medical Scanners
Miejsce pochodzenia Chiny, Suzhou
Nazwa handlowa SUPT MOTION
Orzecznictwo ISO9001,CE,3C
Numer modelu Seria VCAB
Minimalne zamówienie 1 szt
Cena $108-$200
Szczegóły pakowania Dostosowane opakowanie itp.
Czas dostawy <i>1-5pcs ,5 days .</i> <b>1-5 sztuk, 5 dni.</b> <i>&gt;20pcs ,To be negotiated</i> <b>&gt;20szt. Do
Zasady płatności T/T
Możliwość Supply Do negocjacji

Skontaktuj się ze mną, aby otrzymać bezpłatne próbki i kupony.

WhatsApp:0086 18588475571

czat: 0086 18588475571

Skype'a: sales10@aixton.com

W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.

x
Szczegóły Produktu
Gwarancja 3 miesiące-1 rok Model produktu VCAB0087-0563-00A
Waga (g) 177 Siła szczytowa (N) 87
Całkowity skok (mm) 56,3 Maksymalne napięcie （V） 63,4
Aplikacja Produkt automatyczny Prędkość Wysoki
Typ produktu liniowy silnik cewki drgającej Komutacja Szczotka
Siła ciągła (N) 17,5 N Pola aplikacji Elektronika 3C, półprzewodniki, automatyka, optyka, sprzęt inspekcyjny
Hałas Niski hałas
Zostaw wiadomość
opis produktu

Product Description:

The VCAB0087-0563-00A shaft-type linear voice coil motor from SUPT adopts a moving-coilactuation mechanism combined with a precision-guided shaft and linear bearings, offering excellentstability within a compact structure. lts high-flux permanent magnet assembly creates a strongmagnetic field, enabling the lightweight moving coil to produce highly responsive and linear forceoutput with minimal inertia. This design allows the actuator to maintain outstanding dynamicbehavior during rapid acceleration, deceleration, and frequent reciprocating motion.

The Linear Voice Coil Motor, with its frictionless drive, high-frequency response, nanometer-level displacement resolution, and highly linear motion output, has become an essential actuator in modern medical scanning equipment. It is widely used in blood analyzers, CT auxiliary positioning units, confocal scanners, endoscope autofocus modules, and ultrasound probe scanning mechanisms, enabling fast, silent, contact-free, and highly repeatable micro-positioning performance.

Features:

  • Frictionless Direct-Drive Architecture
  • Ultra-Precise Micro-Positioning (Nanometer Resolution)
  • Ultra-Low Noise Motion
  • Millisecond-Level Fast Response
  • Supports Closed-Loop Position / Force Control

Low Noise High Stability Linear Voice Coil Motor For Medical Scanners 0

Technical Specifications :

Stroke:56.3mm

Continuous Force:147.6N

Peak Force:87N

Force Constant:8N/A

Resistance:35.2Ω

Mass:good

Dimensions:200*400*400cm

Working Current:1.8A

Product Parameters:

Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Weight of the coil
(g)		 Stator Diameter Shaft end thread
(mm)
VCAB0005-0039-00A 5 1.5 3 5.4 0.9 23 29.5 M2(Outer)
VCAB0005-0050-00A 5 2.2 3.9 14.5 3.1 27 31.5 M2.5(Outer)
VCAB0013-0072-00A 13 4.2 7.2 26.6 5.72 16.2 26.2 M3(Outer)
VCAB0015-0062-00A 15 6.5 6.2 26.2 9.75 14.8 33 M3(Outer)
VCAB0015-0127-00A 15 4.9 12.7 21.5 4.1 12.5 30.5 Shaft ∮4.8
VCAB0022-0098-00A 22 6.6 9.8 24.7 5.8 20 34.1 M3(Outer)
VCAB0022-0448-00A 22 11.4 44.8 14.3 4 52 48 M3(Inner)
VCAB0032-0050-00A 32 8.9 5 29.3 7.1 48 40 M3(Inner)
VCAB0033-0099-00A 33 8 9.9 24.3 5.87 23.5 36 M3(Outer)
VCAB0033-0224-00A 33 13.5 22.4 26.7 6.8 69 58 M3(Inner)
VCAB0035-0105-00A 35 15.6 10.5 11.9 5 91 50 M3(Inner)
VCAB0044-0040-00A 44 16.3 4 18.3 8.9 46.5 53 M3(Inner)
VCAB0044-0059-00A 44.1 17.7 5.9 14.3 8 43 46 M3(Inner)
VCAB0044-0075-00A 44 13.7 7.5 16.8 7.6 38.6 31.1 M3(Outer)
VCAB0044-0249-00A 44 11.7 24.9 44.9 8.88 65.9 38.1 M3(Inner)
VCAB0070-0149-00A 70 27.3 14.9 26.9 17.7 79 43 M3(Inner)
VCAB0087-0062-00A 87 21.67 6.2 34.5 12.7 45.2 43.1 M3(Inner)
VCAB0087-0563-00A 87 17.5 56.3 63.4 8.1 177 72 shaft ∮10
VCAB0088-0191-00A 88.5 23.2 19.1 29.9 8 162 50.8 M3(Inner)
VCAB0105-0164-00A 105 35.4 16.1 20.1 11.5 150 60.4 M3(Inner)
VCAB0113-0089-00A 113 35 8.9 31 17.5 125 73 shaft ∮8
VCAB0262-0112-00A 262 111 11.2 35.1 41 285 71 shaft ∮10
VCAB0262-0249-00A 262 112 24.9 28.2 26 785 66 shaft ∮8
VCAB0294-0498-00A 294 56.8 49.8 114 24.5 685 93 shaft ∮10
VCAB0436-0187-00A 436 147.6 18.7 40.7 40.7 648 80.4 shaft ∮10
VCAB0436-0250-00A 436 167 25 31.6 37.2 775 78.4 shaft ∮10
VCAB0445-0300-00A 445 185 30 33 35 920 76.2 shaft ∮10



Applications:

  • Confocal Optical / Laser Scanners
  • Endoscope Autofocus Units
  • Hematology Cell Scanners
  • Ultrasound Probe Scanning Mechanisms
  • Medical Lab Micro-Positioning Stages
  • CT / X-Ray Positioning Units

Low Noise High Stability Linear Voice Coil Motor For Medical Scanners 1
