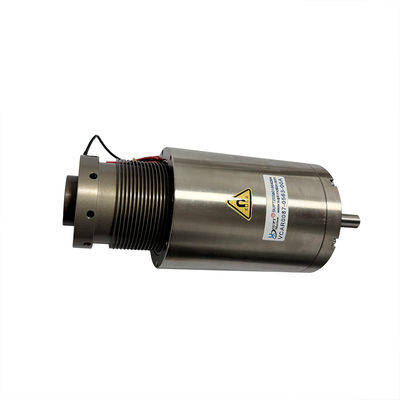

High Response Linear Voice Coil Actuator For Semiconductor Wafer Inspection
| Miejsce pochodzenia | Chiny, Suzhou |
|---|---|
| Nazwa handlowa | SUPT MOTION |
| Orzecznictwo | ISO9001,CE,3C |
| Numer modelu | Seria VCAB |
| Minimalne zamówienie | 2szt |
| Cena | $100-$180 |
| Szczegóły pakowania | Dostosowane opakowanie itp. |
| Czas dostawy | <i>1-5pcs ,5 days .</i> <b>1-5 sztuk, 5 dni.</b> <i>>20pcs ,To be negotiated</i> <b>>20szt. Do |
| Zasady płatności | T/T |
| Możliwość Supply | Do negocjacji |
Skontaktuj się ze mną, aby otrzymać bezpłatne próbki i kupony.
WhatsApp:0086 18588475571
czat: 0086 18588475571
Skype'a: sales10@aixton.com
W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.
xSzczegóły Produktu
| Gwarancja | 3 miesiące-1 rok | Model produktu | VCAB0044-0075-00A |
|---|---|---|---|
| Waga (g) | 38,6 | Siła szczytowa (N) | 44 |
| Całkowity skok (mm) | 7,5 | Maksymalne napięcie （V） | 16.8 |
| Aplikacja | Produkt automatyczny | Dokładność pozycjonowania | Wysoki |
| Typ produktu | liniowy silnik cewki drgającej | Komutacja | Szczotka |
| Siła ciągła (N) | 13,7 N | Pola aplikacji | Elektronika 3C, półprzewodniki, automatyka, optyka, sprzęt inspekcyjny |
opis produktu
Product Description:
Linear voice coil actuators are especially suitable for precision processes such as alignment, sorting, and wafer handling in semiconductor production lines. Their zero backlash and high repeatability ensure highly accurate micro-displacement operations. The frictionless motion structure further enhances dynamic response capability, making them ideal actuators for precision industrial control systems.

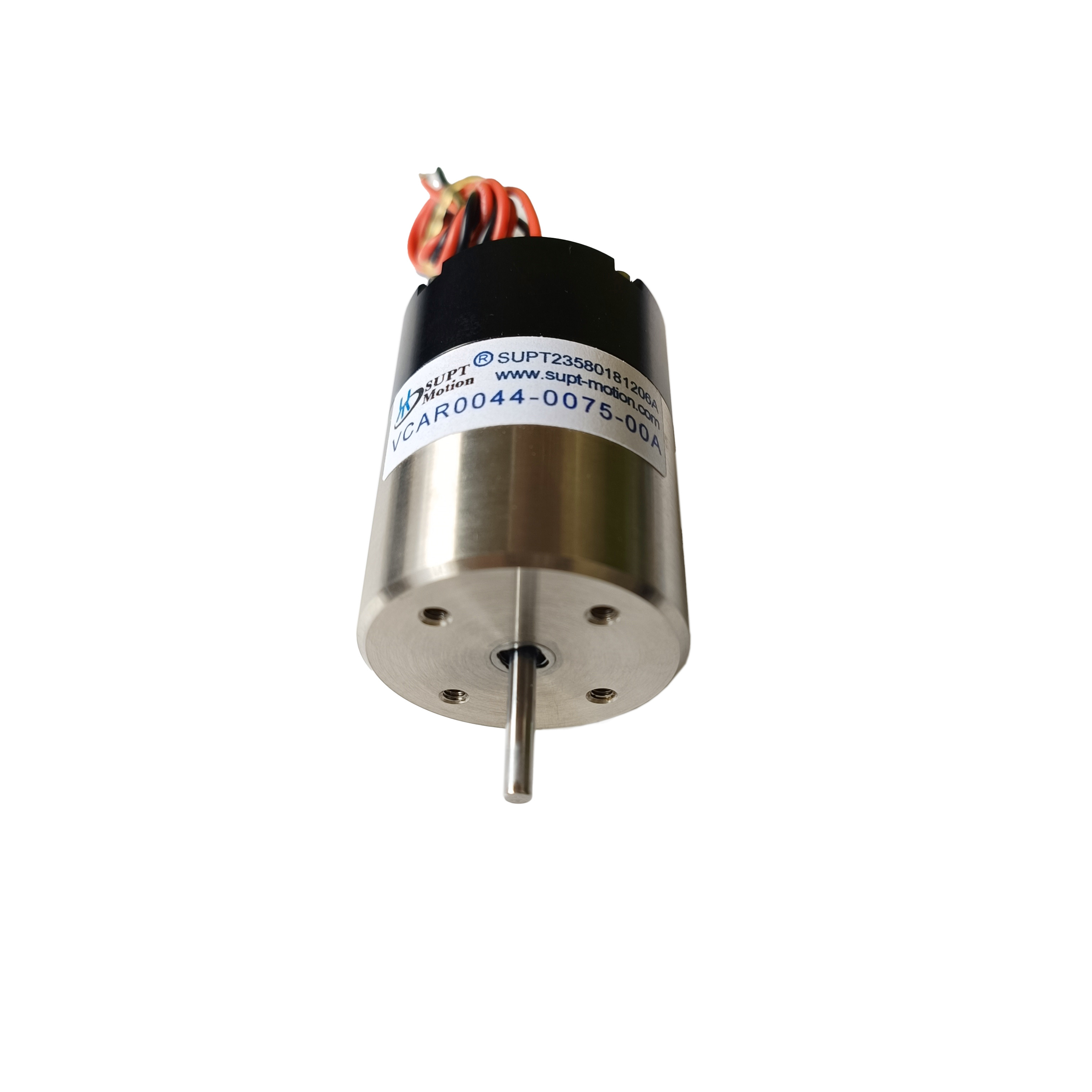

SUPT’s shaft-mounted linear voice coil motor, model VCAB0044-0075-00A, features an integrated motion shaft combined with durable linear bearings to deliver exceptionally smooth motion even under high dynamic loads. Its internal configuration includes a high-energy permanent magnet and a lightweight moving coil, achieving minimal inertia and enabling rapid changes in output force—an essential characteristic for high-performance direct-drive actuators.
Unlike conventional screw-based or gear-driven systems, the VCAB series eliminates all mechanical transmission elements, providing true zero-backlash operation and reducing positioning errors caused by wear or friction. With millisecond-level responsiveness, the motor excels in applications requiring frequent speed adjustments, such as high-speed sorting, machine-vision alignment, and precision motion control stages. When integrated with closed-loop sensing, it can achieve excellent positioning accuracy and repeatability.
Features:
- High frequency response, suitable for rapid motion cycles
- Micron-level positioning accuracy
- Zero backlash, zero cogging, wear-free design
- High acceleration and smooth linear force output
- Compact and lightweight structure for flexible integration
- Long service life and low maintenance requirements
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |

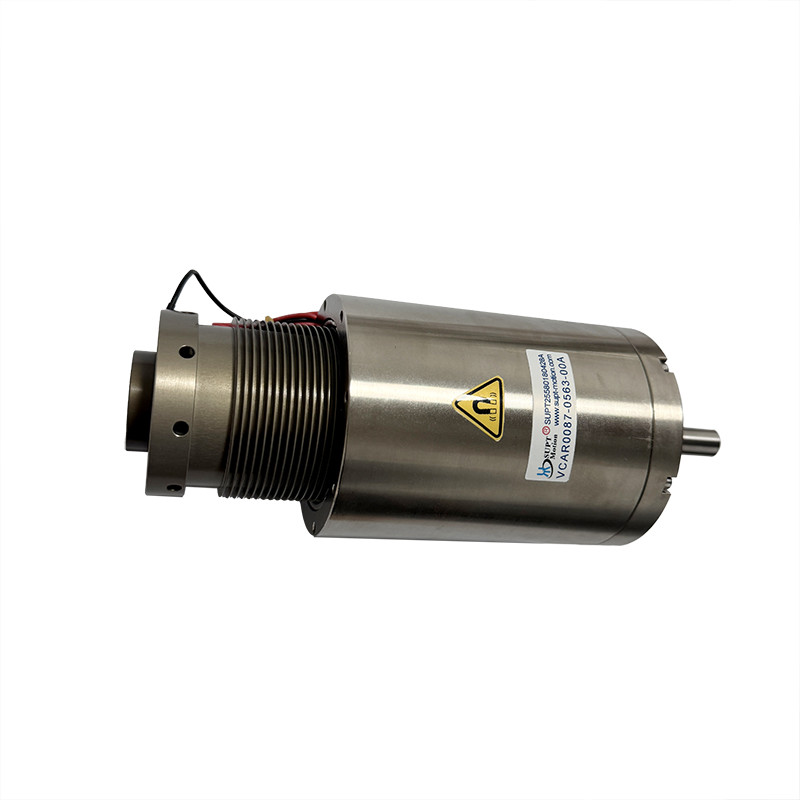

| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |

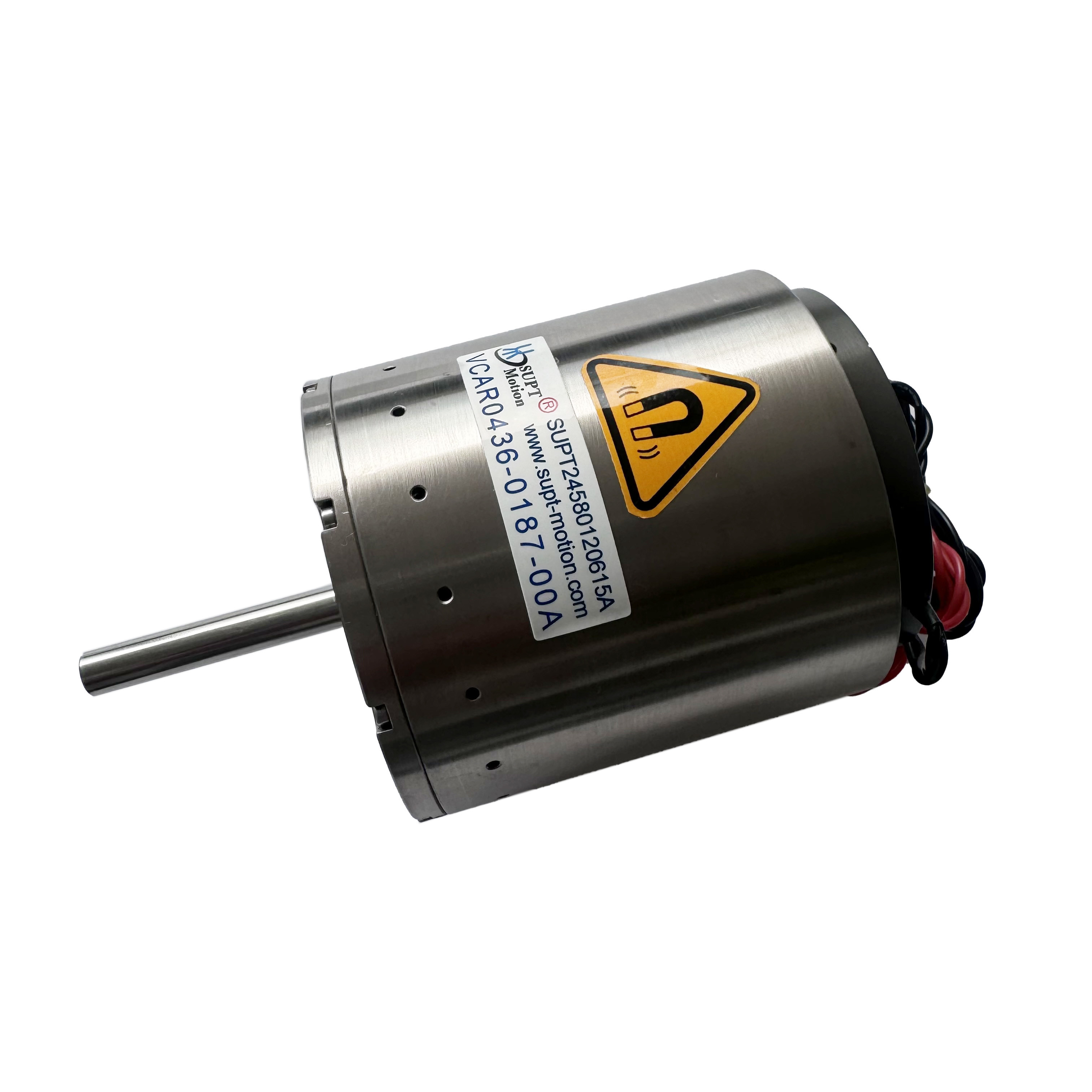

| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
- Semiconductor equipment (inspection, pick-and-place, wafer handling)
- Industrial automation and robotics
- Medical imaging and diagnostic devices
- Optical autofocus and precision lens modules
- Aerospace laboratory instruments
- Micro-positioning and micro-assembly systems
